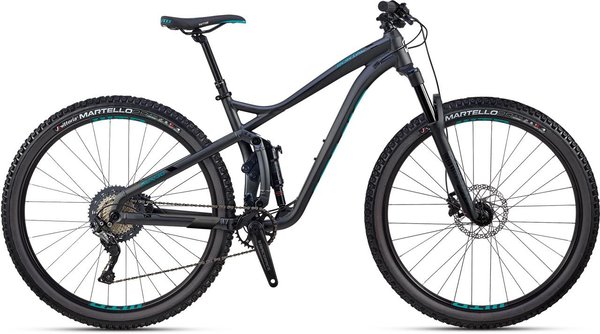

Jamis Portal A2 - 2019

Details
Jamis hit the sweet spot with the Portal. With 130mm of front and rear travel, it offers enough suspension to take on any trail you have the guts to try, but is still svelte and nimble enough to pedal anywhere on the map. The 3VO suspension designed by Chris Currie of Speedgoat nails the bullseye of suspension kinematics: active and stable under pedaling and hard braking but sensitive to small bumps and ready for big, square-edged hits. RockShox deftly controls that rear travel, as well as handling suspension duties up front with a Deluxe R shock and Revelation RC fork, respectively. Portal A2 rolls fast and confidently on 29-inch Vittoria tires and comes with Shimano’s SLX 1x11 drivetrain, so you’ll have a broad range of gears at your fingertips, perfect for aiming at a mountain and pressing “Play.” Bringing the Portal safely back to low orbit takes nothing but a gentle squeeze of the Shimano MT500 hydraulic brake levers, delivering the power and confidence to master the trail. And, a KS dropper post ensures your body is in the right position for the task at hand, whether you’re grinding up the thirty-third switchback in a row or shredding down a buffed park jump line.
Specs
Frame | Triple-butted 6061 aluminum, 130mm travel 3VO suspension, Enduro® Max sealed bearing pivots, 1.5 - 1 1/8" tapered head tube, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, Rock Shox Deluxe R DebonAir shock, replaceable derailleur hanger |
---|---|
Fork | RockShox Revelation RC 29", air spring compression, rebound adjust, tapered alloy steerer, 130mm travel |
Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
Rear Shock | RockShox Deluxe R DebonAir shock |
Axles |
Front: 110 x 15mm Rear: 148 x 12mm |
Rims/Wheels | WTB ST i25 TCS 29" tubeless rims, 32H |
Hubs | Formula sealed bearing 6-bolt disc |
Spokes | Stainless spokes |
Tires | Vittoria Martello 29 x 2.35", TNT tubeless |
Crankset | Race Face Ride |
Chainrings | 32T |
Bottom Bracket | Race Face BSA |
Chain | KMC X11, 11-speed |
Rear Derailleur | Shimano SLX Shadow Plus, 11-speed |
Cassette/Rear Cogs | Shimano M7000, 11-speed, 11-46T |
Shifters | Shimano SLX, 1x11-speed |
Handlebars | Race Face Ride, 760mm x 20mm rise, 35mm diameter |
Tape/Grips | Jamis Lock-On |
Stem | Race Face Ride, 50mm extension, 35mm clamp diameter |
Brake Levers | Shimano MT500 |
Brakes | Shimano MT500 hydraulic disc, 180mm 6-bolt rotors |
Saddle | WTB Volt |
Seat Post | KS E10i Internal Dropper, Southpaw remote |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Charcoal / 14.5-inch | 845436064635 | 03-2045 : 03-2045CL | |
Charcoal / 15.5-inch | 845436064642 | 03-2045 : 03-2046CL | |
Charcoal / 17-inch | 845436064659 | 03-2045 : 03-2047CL | 9635 |
Charcoal / 19-inch | 845436064666 | 03-2045 : 03-2048CL | |
Charcoal / 21-inch | 845436064673 | 03-2045 : 03-2049CL | |
